Round CK45 Induction Hardened Rod With Chrome Plating Diameter 6mm - 1000mm

گواهی
چین Jiangsu New Heyi Machinery Co., Ltd گواهینامه ها
چین Jiangsu New Heyi Machinery Co., Ltd گواهینامه ها
نظرات مشتریان
Good service, good quality

—— AMMA - Russia

Very good factory

—— Peter-America

چت IM آنلاین در حال حاضر

Round CK45 Induction Hardened Rod With Chrome Plating Diameter 6mm - 1000mm

Round CK45 Induction Hardened Rod With Chrome Plating Diameter 6mm - 1000mm
Round CK45 Induction Hardened Rod With Chrome Plating Diameter 6mm - 1000mm Round CK45 Induction Hardened Rod With Chrome Plating Diameter 6mm - 1000mm

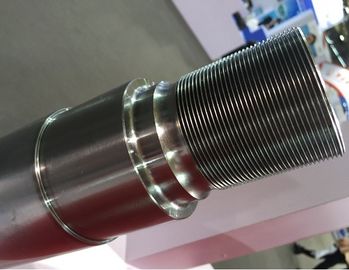

تصویر بزرگ :  Round CK45 Induction Hardened Rod With Chrome Plating Diameter 6mm - 1000mm

جزئیات محصول:

Place of Origin: China
نام تجاری: HY
گواهی: ISO9001:2008

پرداخت:

Minimum Order Quantity: 5 tons
قیمت: Negotiation
Packaging Details: Anti rust oil to be applied on material and each rod to be packed in paper sleeve
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 30tons a day
توضیحات محصول جزئیات
تولید - محصول: میله پیستون سخت شده القایی وضعیت سطح: روکش کروم سخت
ضخامت کروم: 20-30 میکرون زبری سطح: Ra≤0.2micron و Rt≤2micro
بیضی: نصف تلورانس ISO f7 صراط مستقیم: بیش از 0.2 میلی متر در متر نیست
برجسته:

میله فولادی سخت شده

,

میله فولادی سخت شده

,

میله سخت شده القایی گرد ck45

Round CK45 Induction Hardened Rod With Chrome Plating Diameter 6mm - 1000mm





Detailed Product Description

1. Material: CK45, ST52, 20MnV6, 42CrMo4, 40Cr

2. Diameter: 6mm - 1000mm

3. Length: 1000mm - 8000mm

4. Condition: Chrome plated, Quenched / Tempered, Induction hardened, Q / T Induction hardened

5. Application: Mining machinery industry, textile / printing industry and so on

6. Case depth:1.5mm - 2.5mm  Induction hardness:HRC50 - 60





Detailed Description

1.CHEMICAL COMPOSITION

Material

C%

Mn%

Si%

S%

P%

V%

Cr%

Ck45

0.42-0.50

0.50-0.80

0.04

0.035

0.035





ST52

0.22

1.6

0.55

0.035

0.04





20MnV6

0.16-0.22

1.30-1.70

0.10-0.50

0.035

0.035

0.10-0.20



42CrMo4

0.38-0.45

0.60-0.90

0.15-0.40

0.03

0.03



0.90-1.20

40Cr

0.37-0.45

0.50-0.80

0.17-0.37







0.80-1.10



2.MECHANCIAL PROPERTIES

Material

T.S  N/MM2

Y.S  N/MM2

E%(MIN)

CHARPY

CONDITION

CK45

610

355

15

>41J

NORMALIZE

CK45

800

630

20

>41J

Q + T

ST52

500

355

22



NORMALIZE

20MnV6

750

590

12

>40J

NORMALIZE

42CrMo4

980

850

14

>47J

Q + T

40Cr

1000

800

10



Q + T



3. SUPPLY CONDITION

    Ground  and  chrome plated

4. CHROME THICKNESS

     20 to 30 micron

5. SURFACE ROUGHNESS

     Ra≤0.2 micron and  Rt≤2 micro

6. TOLERANCES ON DIA

    ISO f7 on the diameter

7.OVALITY

Half of the tolerance ISO f7

8. STRAIGHTNESS

   ≤0.2MM/M

9. SURFACE HARDNESS

   850-1150HV (vickers 100g)

10.COHESION

   No cracks,breaking or detaching after thermic shock(warming up at 300 celsius degrees and cooling

    in water)

11 .POROSITY

     Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10

12 CORROSION RESISTANCE

     Test in natural salt spray according to ASTM B 117-72hours

     Results evaluation according to ISO 4540 RATING 7-10

13. WELDABILITY

      Good

14. PACKING

     Anti rust oil to be applied on material and each rod to be packed in paper sleeve

15. CERTIFICATE

     All certificate related with material heat treatment and plating is required





We imported one continous chrome plating line from Italy at the beginning of 2016. With this new chrome plating line, we will improve efficiency and product quality a lot.The new chrome plating line is the first one in China and will be the only one in the next five years!
