40Cr Hollow Round Hydraulic Piston Rod , Induction Hardened Bar

40Cr Hollow Round Hydraulic Piston Rod , Induction Hardened Bar
40Cr Hollow Round Hydraulic Piston Rod , Induction Hardened Bar 40Cr Hollow Round Hydraulic Piston Rod , Induction Hardened Bar

تصویر بزرگ :  40Cr Hollow Round Hydraulic Piston Rod , Induction Hardened Bar

جزئیات محصول:

Place of Origin: China
نام تجاری: HY
گواهی: ISO9001:2008

پرداخت:

Minimum Order Quantity: 5 tons
قیمت: Negotiation
Packaging Details: Anti rust oil to be applied on material and each rod to be packed in paper sleeve
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 30tons a day
توضیحات محصول جزئیات
Product: Hollow round bar Length: 1000mm - 8000mm
OD: 6mm - 1000mm Diameter tolerance: ISO f7
Straightness: Not more than 0.2 MM/M Ovality: Half of the tolerance ISO f7
برجسته:

hollow steel tube, hollow steel bar

,

hollow steel bar

40Cr Hollow Round Hydraulic Piston Rod , Induction Hardened Bar


Detailed Product  Description

1. Material: CK45, ST52, 20MnV6, 42CrMo4, 40Cr
2. Tensile strength: Not less than 610 N/MM2
3. Yield strength: Not less than 355 N/MM2
4. Complete manufactured equipment
5. Application: Mining machinery industry, textile / printing industry and so on


Detailed Description
1.CHEMICAL COMPOSITION

Material

C%

Mn%

Si%

S%

P%

V%

Cr%

Ck45

0.42-0.50

0.50-0.80

0.04

0.035

0.035





ST52

0.22

1.6

0.55

0.035

0.04





20MnV6

0.16-0.22

1.30-1.70

0.10-0.50

0.035

0.035

0.10-0.20



42CrMo4

0.38-0.45

0.60-0.90

0.15-0.40

0.03

0.03



0.90-1.20

40Cr

0.37-0.45

0.50-0.80

0.17-0.37







0.80-1.10


2.MECHANCIAL PROPERTIES

Material

T.S  N/MM2

Y.S  N/MM2

E%(MIN)

CHARPY

CONDITION

CK45

610

355

15

>41J

NORMALIZE

CK45

800

630

20

>41J

Q + T

ST52

500

355

22



NORMALIZE

20MnV6

750

590

12

>40J

NORMALIZE

42CrMo4

980

850

14

>47J

Q + T

40Cr

1000

800

10



Q + T


3. SUPPLY CONDITION
    Ground  and  chrome plated
4. CHROME THICKNESS
     20 to 30 micron
5. SURFACE ROUGHNESS
     Ra≤0.2 micron and  Rt≤2 micro
6. TOLERANCES ON DIA
    ISO f7 on the diameter
7.OVALITY
Half of the tolerance ISO f7
8. STRAIGHTNESS
   ≤0.2MM/M
9. SURFACE HARDNESS
   850-1150HV (vickers 100g)
10.COHESION
   No cracks,breaking or detaching after thermic shock(warming up at 300 celsius degrees and cooling
   in water)
11 .POROSITY
     Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10
12 CORROSION RESISTANCE
     Test in natural salt spray according to ASTM B 117-72hours
     Results evaluation according to ISO 4540 RATING 7-10
13. WELDABILITY
      Good
14. PACKING
     Anti rust oil to be applied on material and each rod to be packed in paper sleeve
15. CERTIFICATE
     All certificate related with material heat treatment and plating is required

We imported one continous chrome plating line from Italy at the beginning of 2016. With this new chrome plating line, we will improve efficiency and product quality a lot.The new chrome plating line is the first one in China and will be the only one in the next five years!

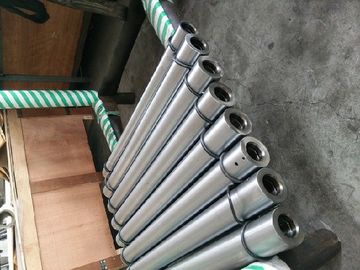

40Cr Hollow Round Hydraulic Piston Rod , Induction Hardened Bar 0

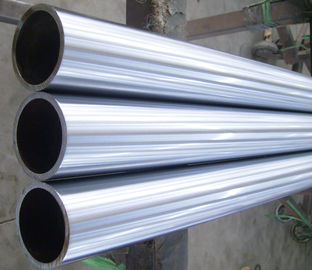

40Cr Hollow Round Hydraulic Piston Rod , Induction Hardened Bar 1
